一、參數

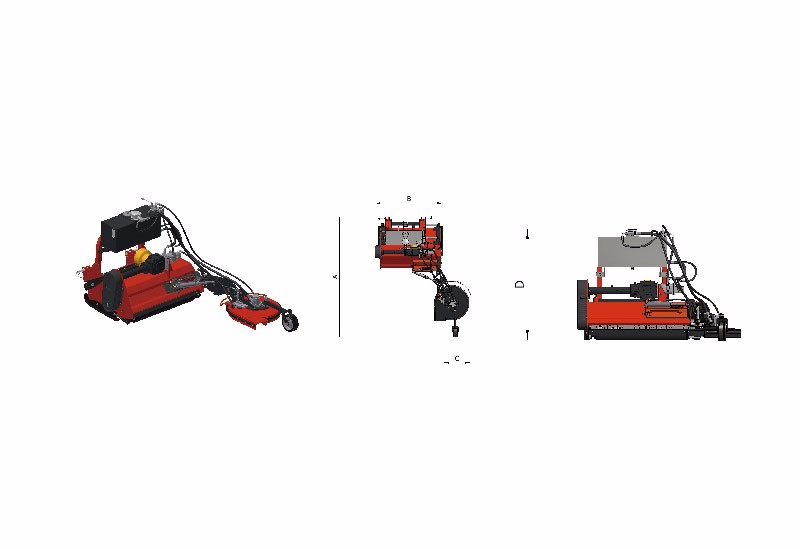

型號 | 作業幅寬 | 鋤刀數量 | 皮帶數量 | 配套動力 | A | B | C | D |
HSM105 | 1050+510 | 16 | 3 | 25-60hp | 2200mm | 1200mm | 0-510mm | 1140mm |
HSM115 | 1150+510 | 20 | 3 | 30-60hp | 2200mm | 1300mm | 0-510mm | 1140mm |
HSM125 | 1250+510 | 20 | 3 | 35-70hp | 2200mm | 1400mm | 0-510mm | 1140mm |
HSM135 | 1350+510 | 24 | 3 | 40-70hp | 2200mm | 1500mm | 0-510mm | 1140mm |
HSM145 | 1450+510 | 24 | 3 | 45-70hp | 2200mm | 1600mm | 0-510mm | 1140mm |
HSM155 | 1550+510 | 24 | 3 | 50-70hp | 2200mm | 1700mm | 0-510mm | 1140mm |
HSM165 | 1650+510 | 28 | 3 | 55-75hp | 2200mm | 1800mm | 0-510mm | 1140mm |
HSM175 | 1750+510 | 28 | 3 | 55-75hp | 2200mm | 1900mm | 0-510mm | 1140mm |
HSM200 | 2000+510 | 32 | 4 | 60-80hp | 2200mm | 2180mm | 0-510mm | 1140mm |
HSM220 | 2200+510 | 36 | 4 | 70-90hp | 2200mm | 2380mm | 0-510mm | 1140mm |
